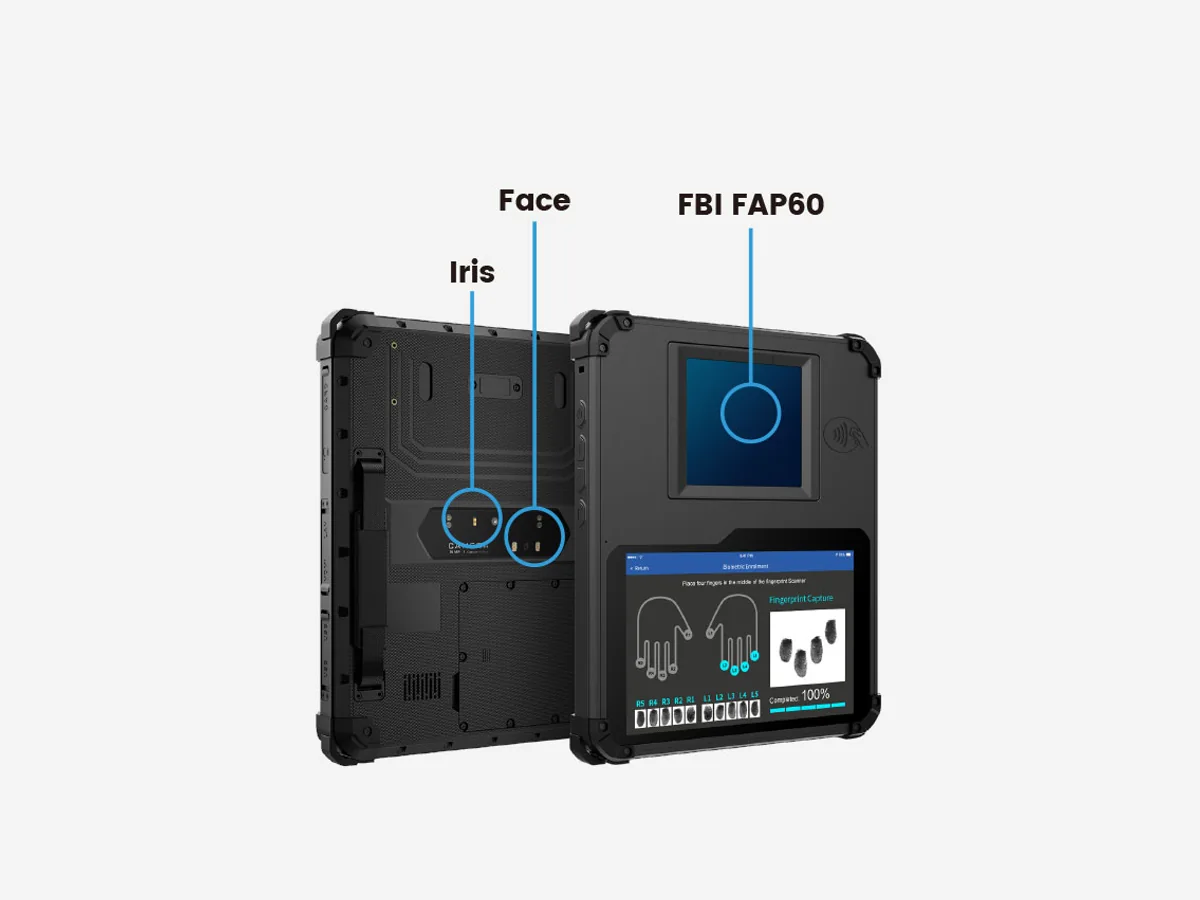

FAP60, Face & Iris Capture
Integrated FAP60 slap capture combines with face and optional rear iris capture in one portable enrolment device.
Device · CMT-60H
COMET-60H
Hardened 8-inch handheld with FBI Appendix F slap capture for border and field operations.
IP65Dust & water resistant
FAP60FBI Appendix F certified
Biometrics
Xperix RealScan-M · FAP60
Display
8" multi-touch
Rugged
IP65
Power
10,000 mAh
Connectivity
4G LTE · WCDMA · GPRS
OS
Android 10–13
Built into the device
Built for the full enrolment workflow.

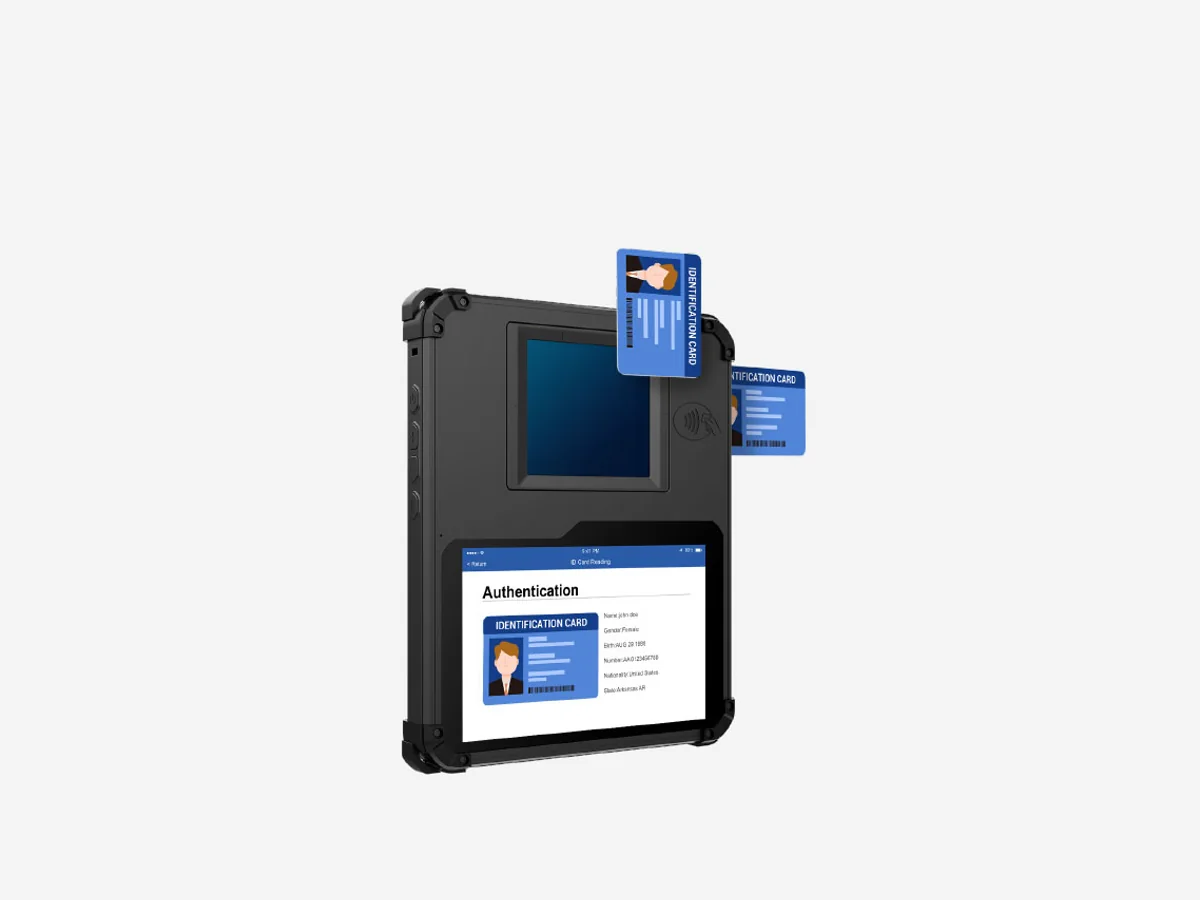

Smart Card & NFC Reading
Contact smart card and NFC readers bring identity credentials directly into the mobile enrolment workflow.

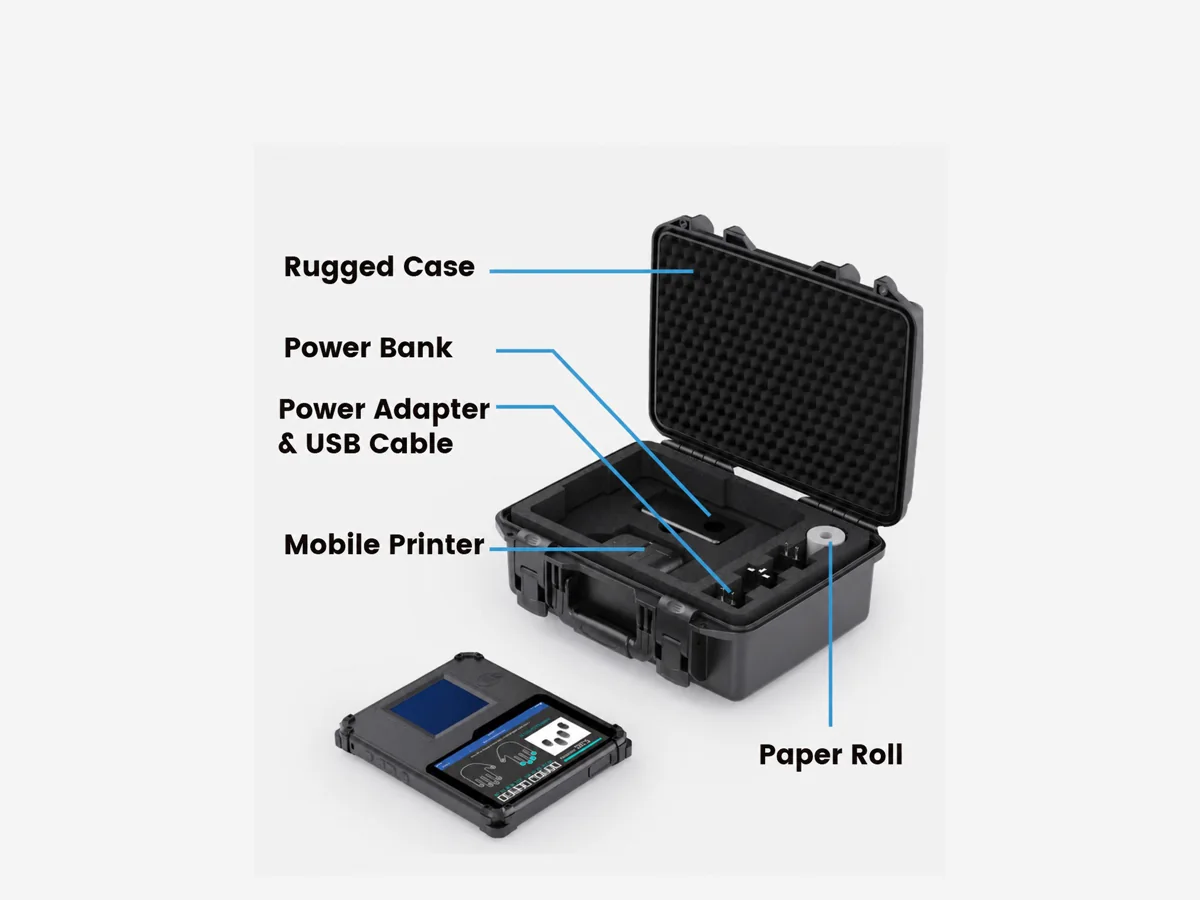

Complete Mobile Enrolment Kit
A rugged transport case can carry the COMET-60H, mobile printer, power bank, power adapter, cabling and paper supplies.
Overview
The COMET-60H brings the COMET-60's FAP60 slap capture capability into a hardened 8-inch handheld form — delivering four-finger slap capture at 1.33 kg with IP65 protection. Powered by an OctaCore processor with 4–8 GB RAM and a 10,000 mAh battery, it is designed for border control, mobile election registration and field identification programmes where ruggedness and battery endurance are critical.
Who It's For
- Border control and immigration checkpoints
- Mobile voter registration in the field
- National ID verification at remote posts
- Refugee and displaced persons registration
- Election day biometric authentication
Key Capabilities
FAP60 · 4-4-2 Slap
Xperix RealScan-M fingerprint module at FBI Appendix F standard. Supports 4-4-2 ten-print slap capture for national ID and border control.
Barcode Capture
Optional 1D/2D laser barcode scanner for identity, registration and field workflows.
IP65 · 1.33 kg
Full ingress protection rated IP65. Compact 8-inch form factor weighing 1.33 kg for mobile operator use.
8" Multi-touch Display
OctaCore 2.0 GHz, 4–8 GB RAM, 16–64 GB storage. 4G LTE, WiFi 802.11 ac, Bluetooth 5.0, GPS, 2× SIM + 2× PSAM.
Dual Cameras
16 MP rear and 5 MP front cameras. ISO 7816 contact smart card and ISO 14443/18092 NFC contactless reader included.
All-Day Battery
10,000 mAh battery charged via USB-C. Android 10–13, MDM compatible, Axon BIO SDK.
Technical Specifications
Technical Data
OPTOptional moduleLICLicence required
Display
| Screen size | 8" multi-touch |
| Type | Capacitive touchscreen |
Processor & Memory
| Processor | OctaCore 2.0 GHz |
| RAM | 4 / 6 / 8 GB |
| Storage | 16 / 64 GB |
Connectivity
| Cellular | 4G LTE · WCDMA · GPRS |
| WiFi | 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 |
| GPS | Built-in |
| SIM / SAM | 2× SIM + 2× PSAM |
Biometrics & Capture
| Fingerprint | Xperix RealScan-M · FAP60 |
| Slap capture | 4-4-2 · FBI Appendix F |
| Laser scanner | OPT 1D / 2D barcode |
| Smart card | ISO 7816 contact |
| NFC | ISO 14443 A/B · ISO 18092 |
Cameras
| Rear camera | 16 MP |
| Front camera | 5 MP |
Battery & Power
| Capacity | 10,000 mAh |
| Charging | USB-C |
Ruggedness & Physical
| IP rating | IP65 |
| Weight | 1.33 kg |
OS & Software
| Operating system | Android 10–13 |
| Smart card | ISO 7816 |
